Hose Tail Reusable ORFS Female 90° Swept

Hose Tail Reusable ORFS Female 90° Swept

SKU HTR-ORF-90S-0409
by Engmattec
$7.50 - $12.45
$7.50
$7.50
$6.40 - $12.45
$7.50

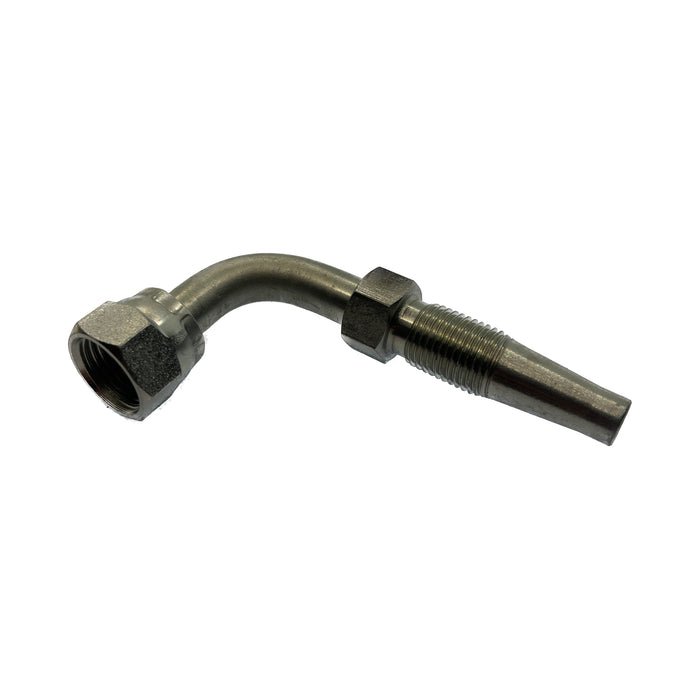

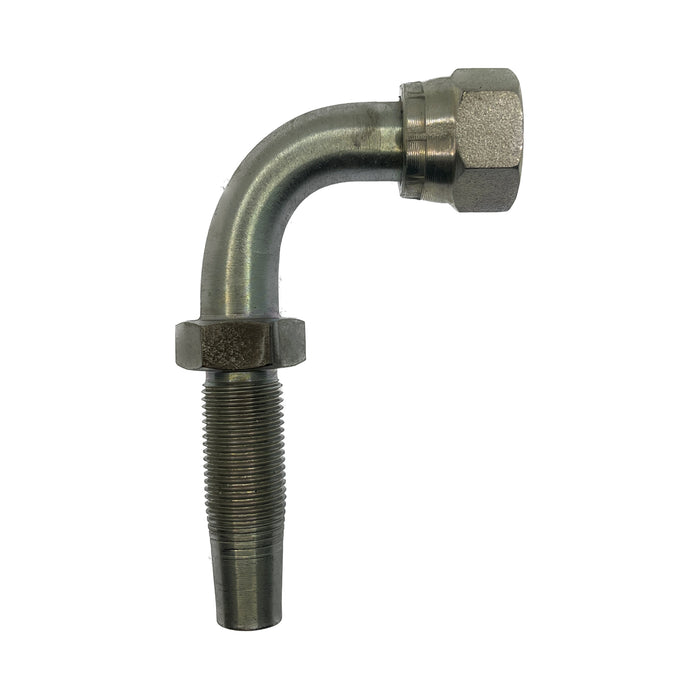

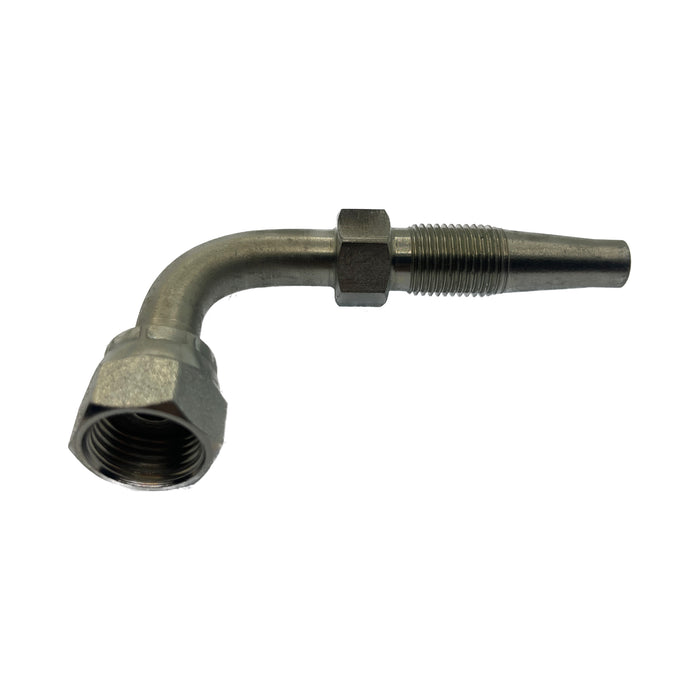

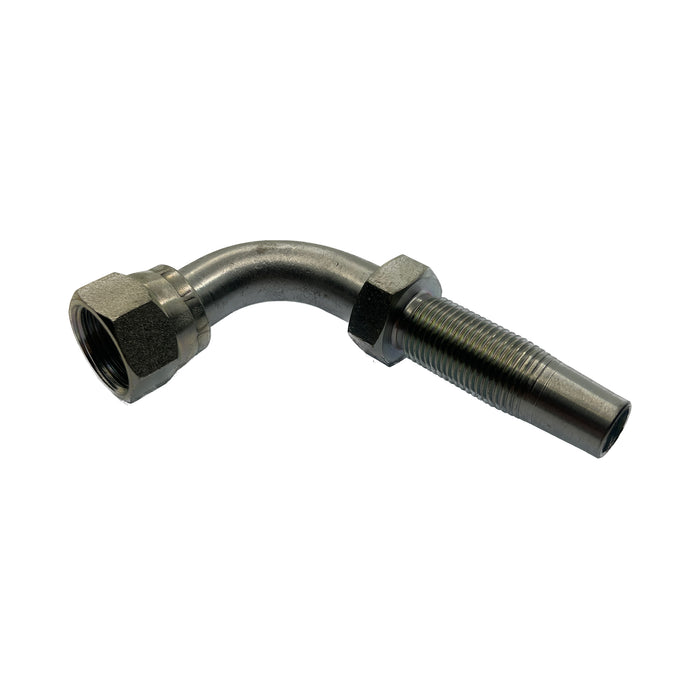

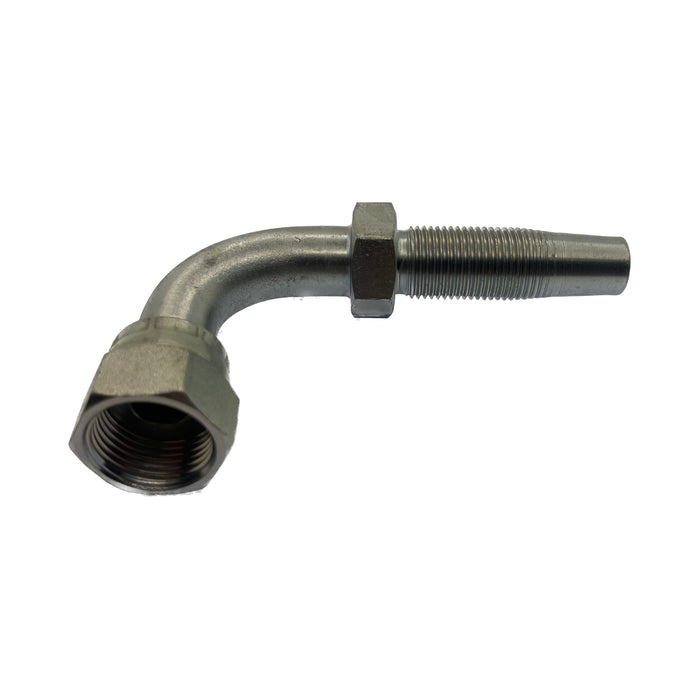

Hose Tail Reusable ORFS Female 90° Swept – Two Piece Hydraulic Fitting

The ENGMATTEC Reusable ORFS Female Hose Tail with a 90° swept design is a premium hydraulic fitting tailored for angled connections in hydraulic systems. Built for field assembly, this two-piece reusable fitting eliminates the need for crimpers, offering a convenient and efficient solution for professionals like contractors, farmers, and hydraulic repair specialists.

Sizes Available:

Suitable for hose and ORFS Female connections ranging from 9/16" to 1 3/16".

Design Features:

  • 90° swept design optimises routing in tight spaces and confined hydraulic layouts.
  • Reusable configuration ensures quick assembly and removal, ideal for on-site repairs.
  • Manufactured from durable steel to resist corrosion and maintain high-performance standards.
  • Precision-engineered barb ensures a secure grip and leak-free operation under pressure.

Applications:

  • Commonly used in hydraulic systems for industrial machinery, agricultural vehicles, and construction equipment.
  • Designed for high-pressure hydraulic applications requiring angled ORFS Female connections.

Performance Highlights:

  • Delivers leak-free, strong connections under demanding hydraulic conditions.
  • Recommended for use with one-wire and two-wire hydraulic hoses.
  • No crimper required, simplifying field assembly and maintenance.

Machine Brands Using ORFS Fittings:

  • Construction Equipment: Caterpillar, Komatsu, Bobcat, JCB, and Volvo.
  • Agricultural Machinery: John Deere, Case IH, New Holland, and Kubota.
  • Industrial Equipment: Liebherr, Hitachi, and Doosan.

Compatibility:

  • Compatible with SAE 100R1 and SAE 100R2 hydraulic hoses.
  • Replaces reusable ORFS Female fittings from brands such as RYCO, Gates, Parker, Manuli, Eaton/Aeroquip, Pirtek, Taipan, and Stauff.

Important Notes:

  • This listing is for the hosetail only; ferrule bodies are sold separately and can be purchased on our website.
  • Use calipers or verniers to ensure precise sizing for your application.
