Hose Tail Barb Flange Code 61 45° Swept

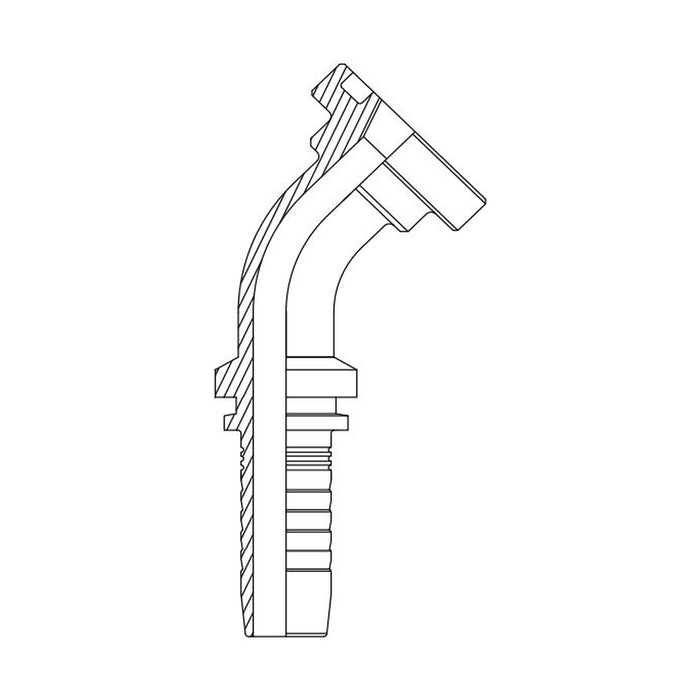

Hose Tail Barb Flange Code 61 45° Swept – Two-Piece Hydraulic Fitting

The ENGMATTEC Flange Code 61 Hose Tail with a 45° swept design is a high-quality hydraulic fitting engineered for robust performance in high-pressure systems. This two-piece barb fitting is compatible with various flange sizes and ensures secure and leak-free connections for hydraulic applications requiring precise alignment and durability.

Sizes Available:

Suitable for hoses ranging from 1/2" to 2". Flange Code 61 sizes include 1/2" to 2".

Design Features:

• 45° swept configuration enables efficient hose alignment in compact or angled setups.
• Manufactured using high-grade steel with a corrosion-resistant coating for longevity.
• Precision-machined barb design for optimal sealing performance when paired with the appropriate ferrules (sold separately).
• Compatible with SAE 100R1, SAE 100R2, R6, and R7 hydraulic hoses for versatile applications.

Applications:

• Ideal for hydraulic systems in construction equipment, industrial machinery, and agricultural vehicles.
• Commonly used in applications such as excavators, hydraulic pumps, and material handling equipment.
• Suitable for high-pressure environments, ensuring reliability and durability in demanding operations.

Performance Highlights:

• Provides robust and leak-free hydraulic connections.
• Designed to handle high-pressure operations in harsh conditions.
• Compatible with one-wire and two-wire hydraulic hoses for flexible installation options.

Machine Brands Using Flange Code 61 Fittings:

• Construction Equipment: Caterpillar, Komatsu, JCB.
• Agricultural Machinery: John Deere, Case IH, New Holland.
• Industrial Systems: Hitachi, Doosan, Liebherr.

Important Notes:

• This listing includes the hose tail only; ensure you purchase the corresponding ferrules for complete assembly.
• Use calipers or verniers to measure and confirm compatibility with your hydraulic system.
