Engmattec - SAE 100R2 - Double Wire Braid (08) 1/2" - 4000psi - Bundle

Engmattec - SAE 100R2 - Double Wire Braid (08) 1/2" - 4000psi - Bundle

SKU H-R2-08-EN-10
by Engmattec
$150.40
$150.40 - $1,504.00
$150.40
$128.17
$128.17 - $911.30
$128.17

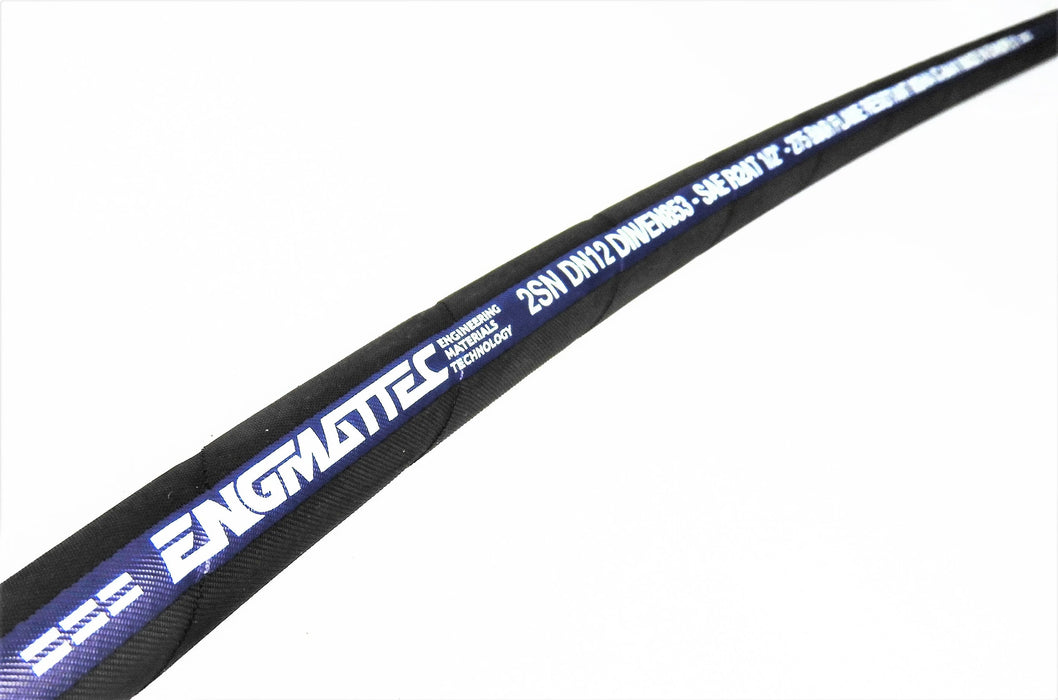

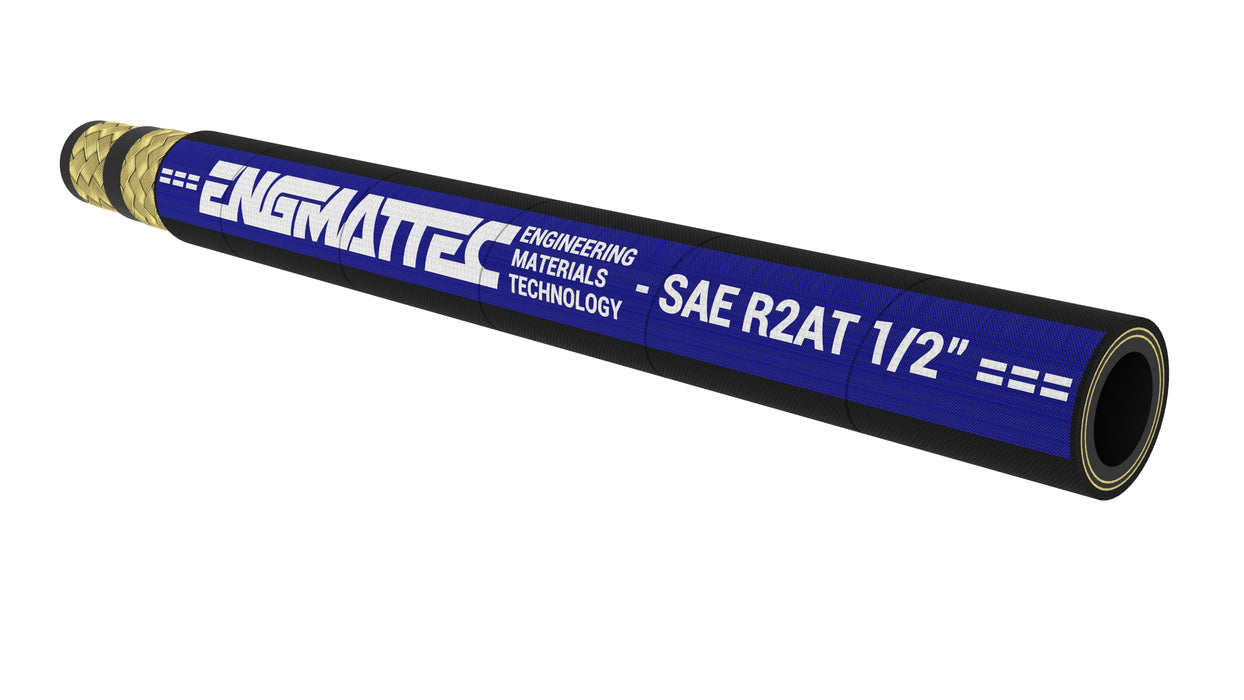

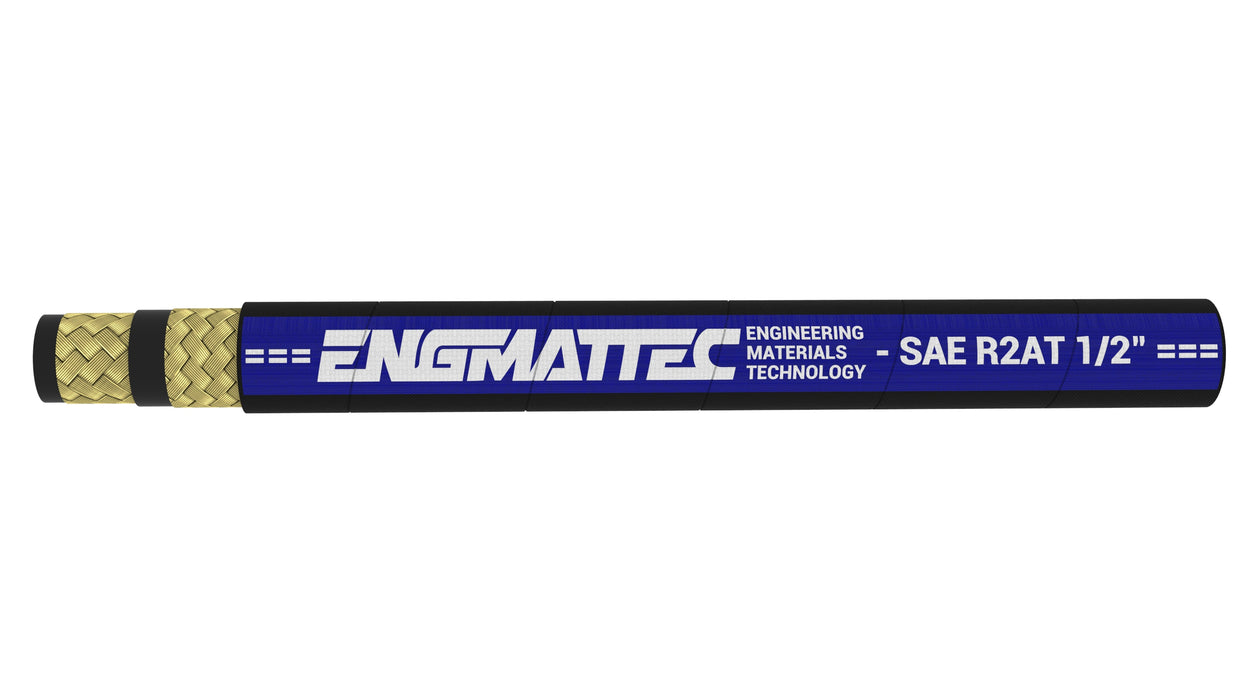

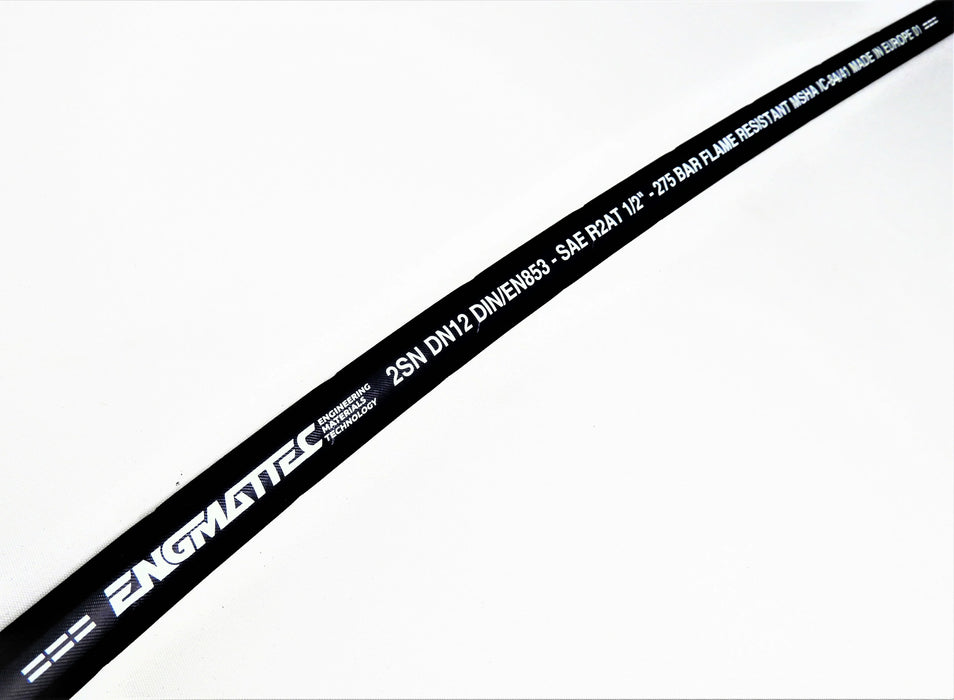

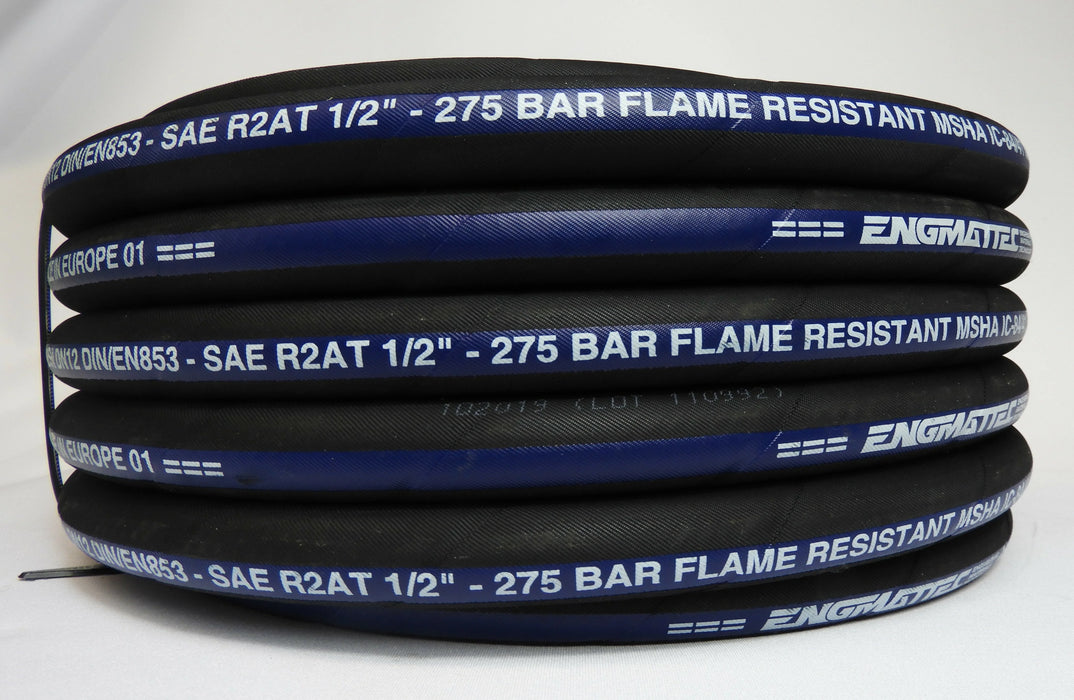

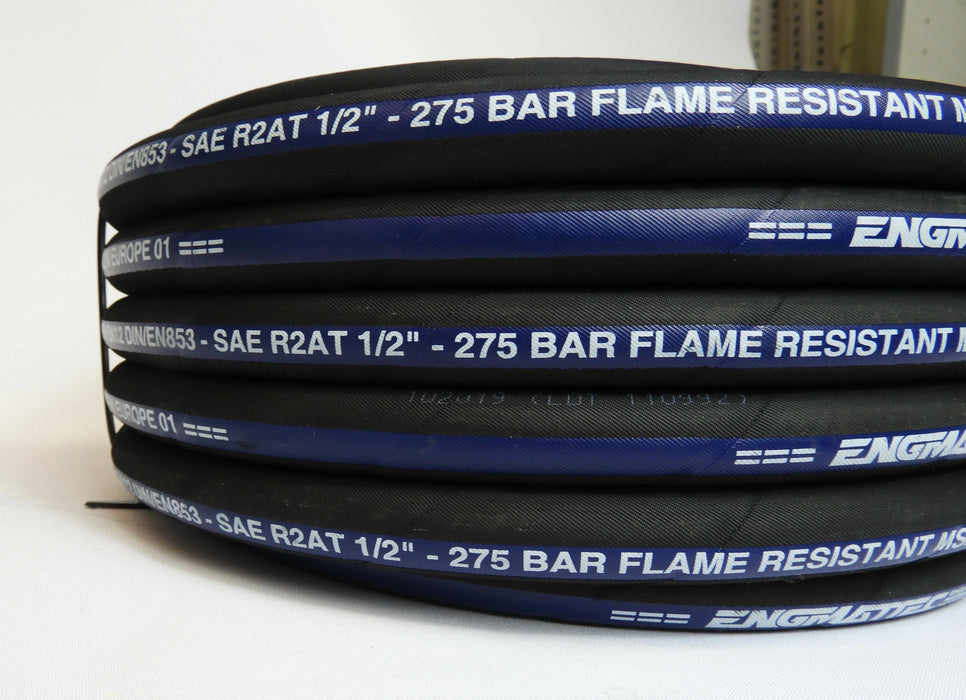

ENGMATTEC - SAE 100R2 Double Wire Braid Hydraulic Hose (08) 1/2" - 4000psi – 10 Metres

The ENGMATTEC SAE 100R2 Hydraulic Hose is a premium-quality two-wire braided hose, engineered for reliable performance in high-pressure hydraulic systems. This 10-metre roll of 1/2" ID hose is ideal for industrial, agricultural, and construction applications, meeting SAE 100R2AT and EN 853 2SN standards.

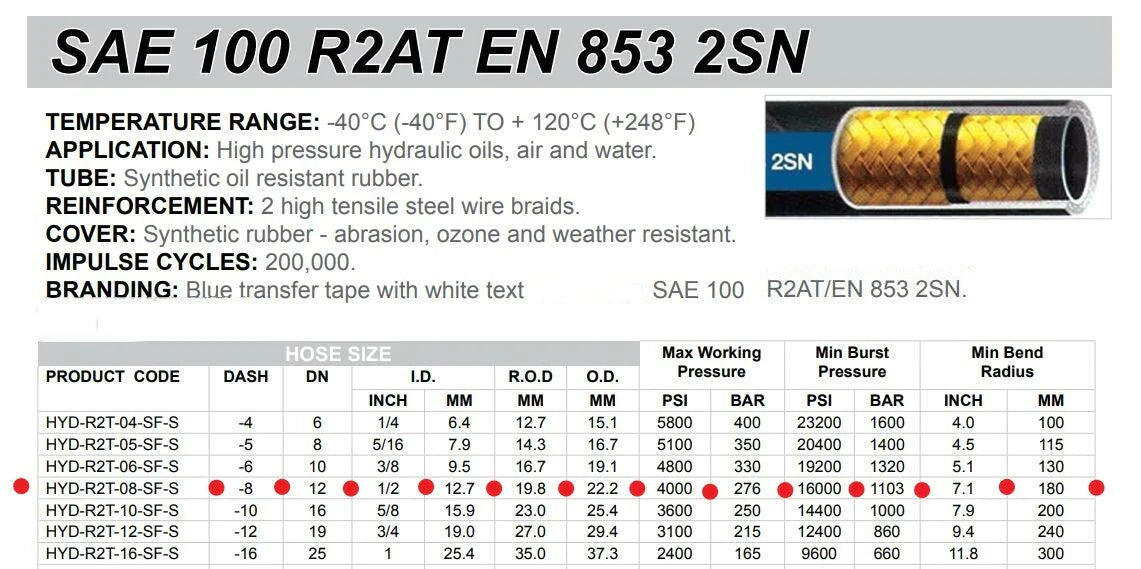

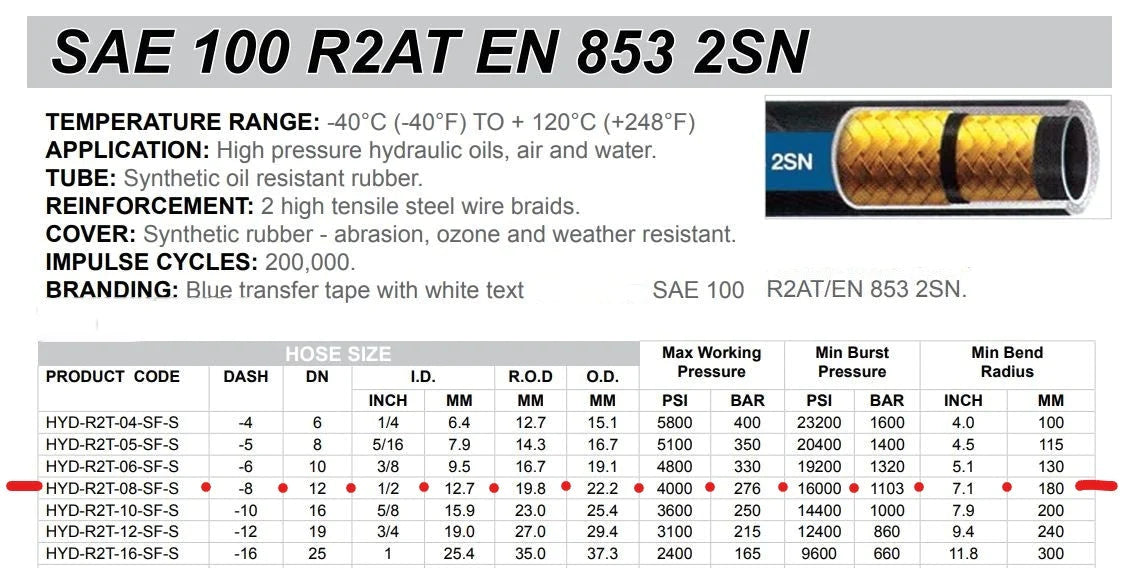

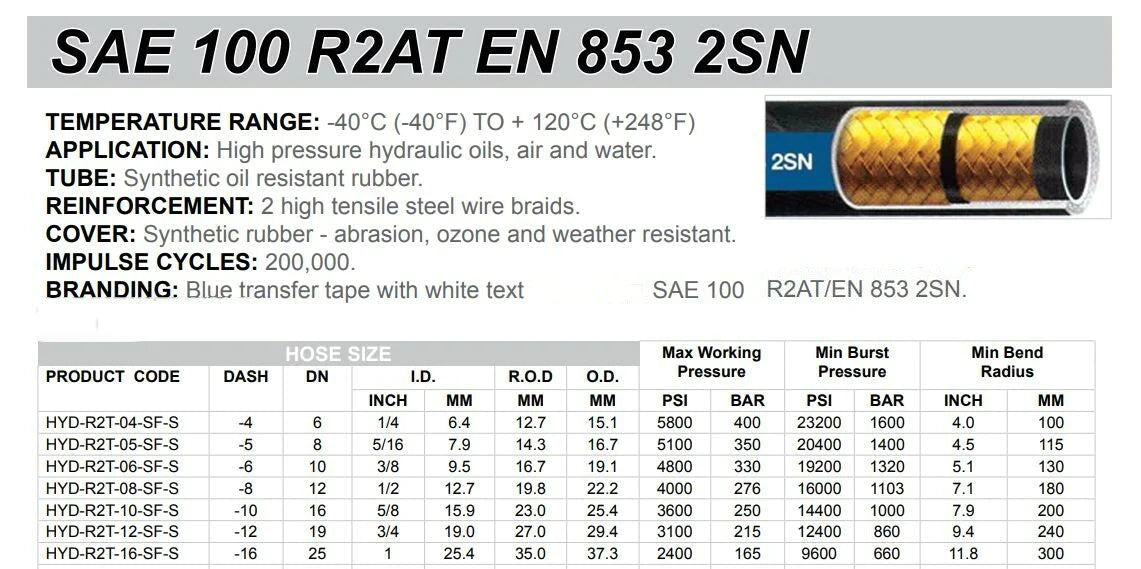

Key Specifications:

  • Pressure Range:
    • Working Pressure: 4000 PSI (275 Bar)
    • Burst Pressure: 16000 PSI (Minimum)
  • Temperature Range: -40⁰C to +120⁰C (intermittent elevated temperatures)
  • Minimum Bend Radius: 135 mm
  • Weight: 0.65 KG/Mtr

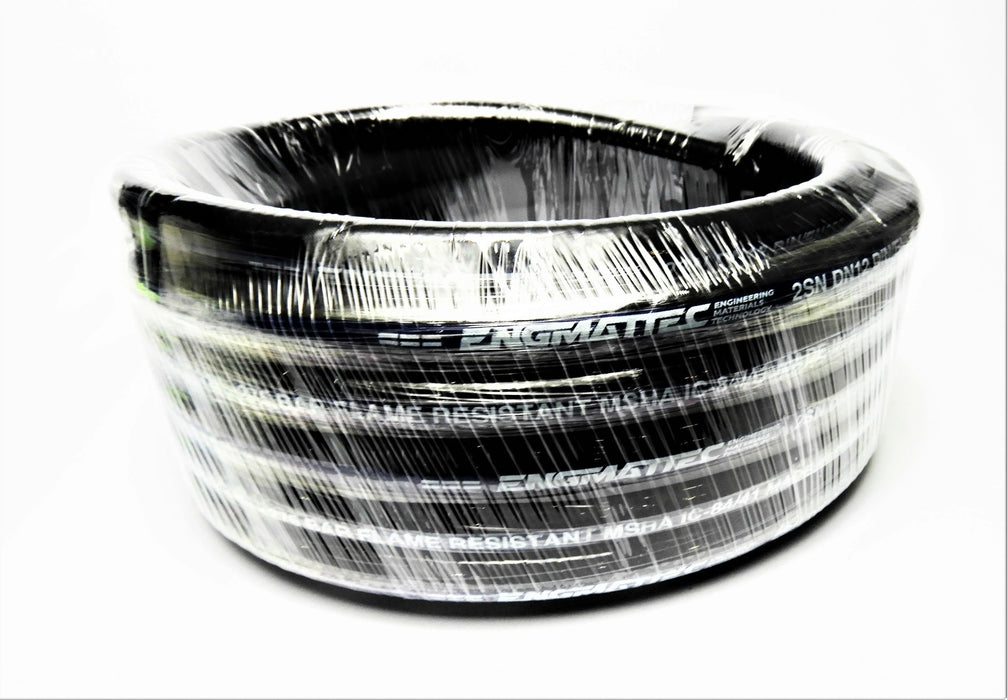

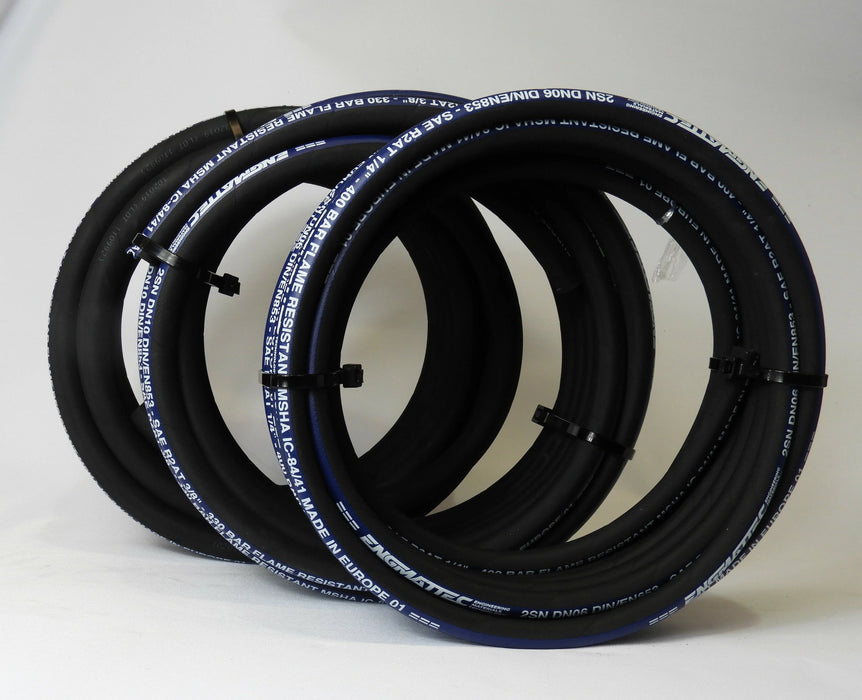

  • Roll Weight: 7.00 KG

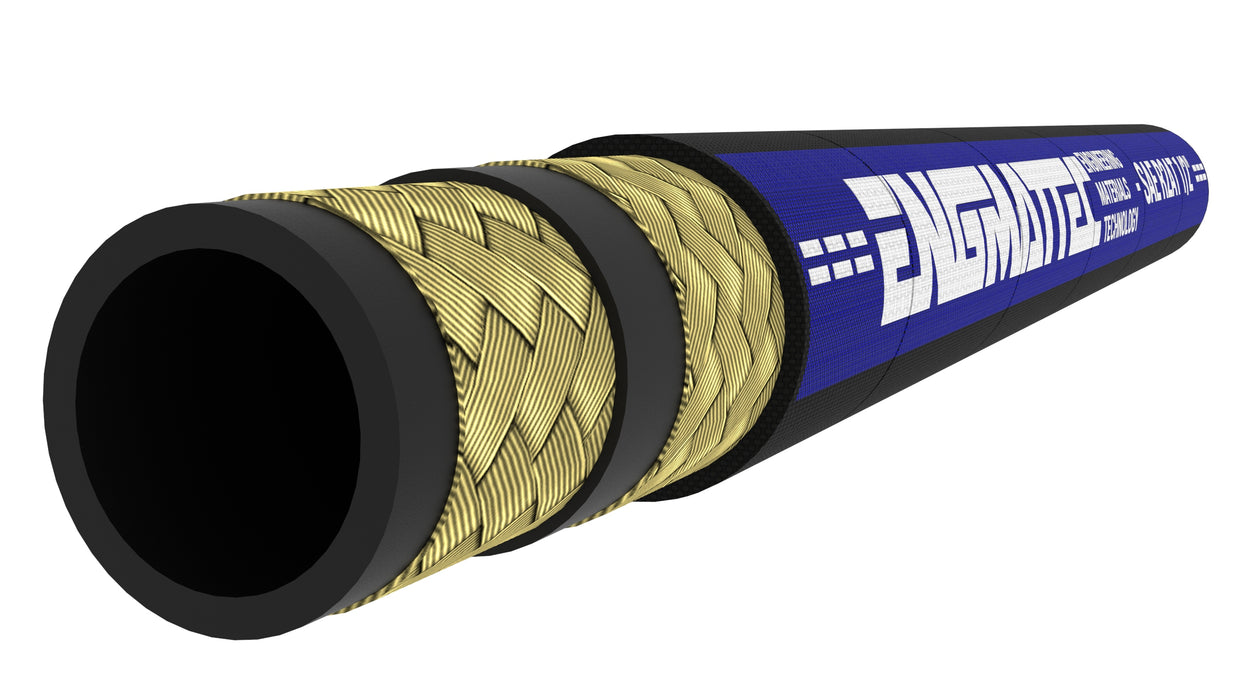

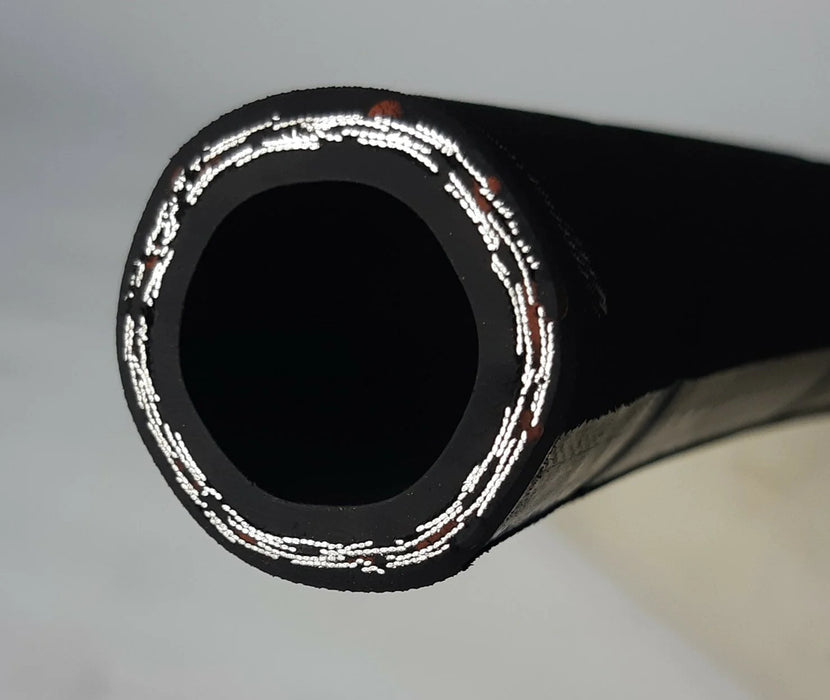

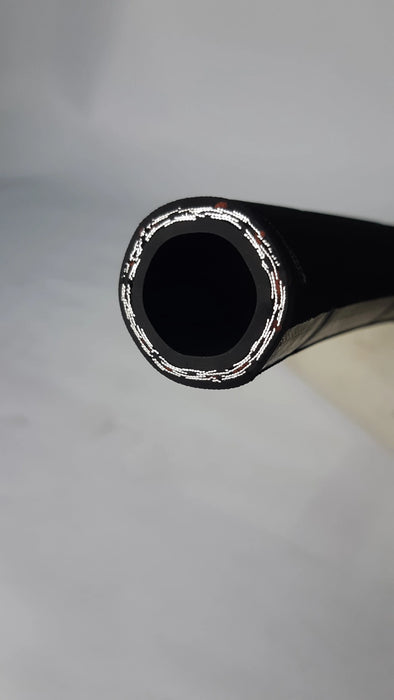

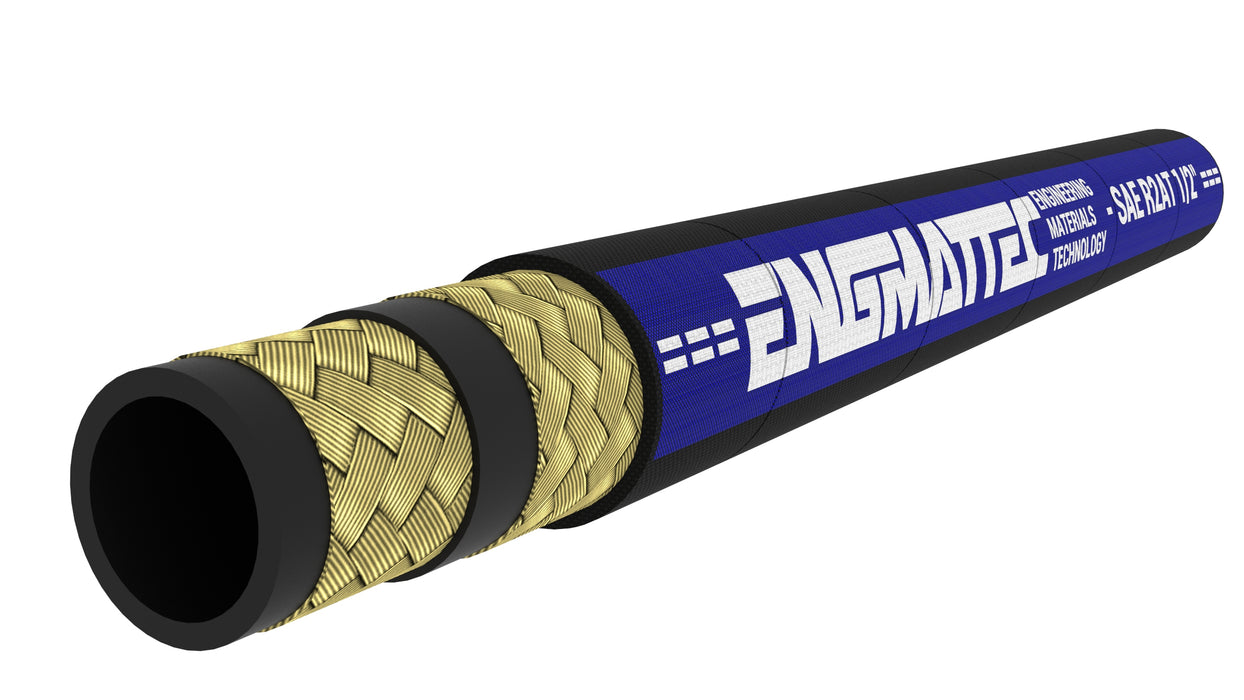

Construction Features:

  • Inner Tube: Synthetic rubber for superior compatibility with hydraulic fluids.

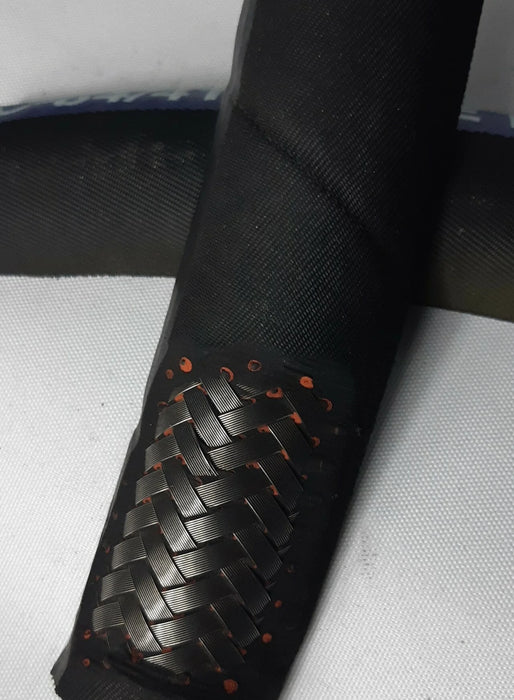

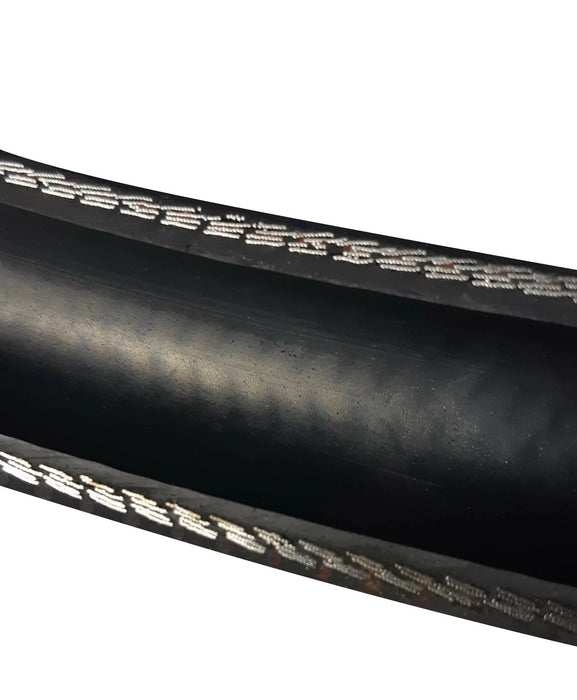

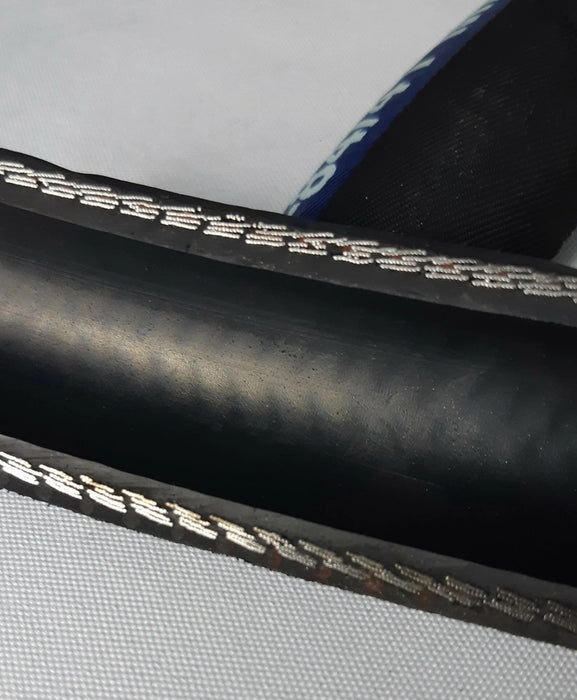

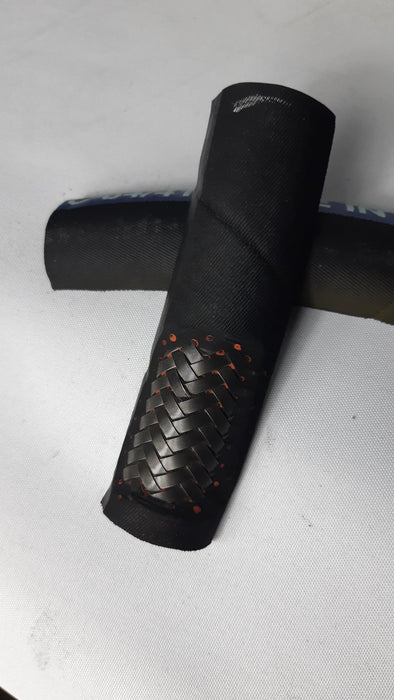

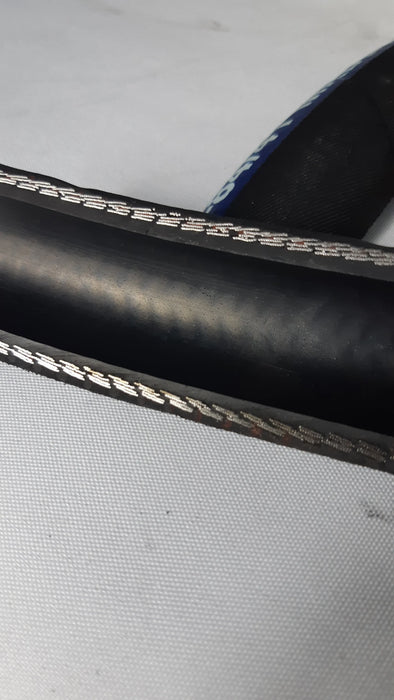

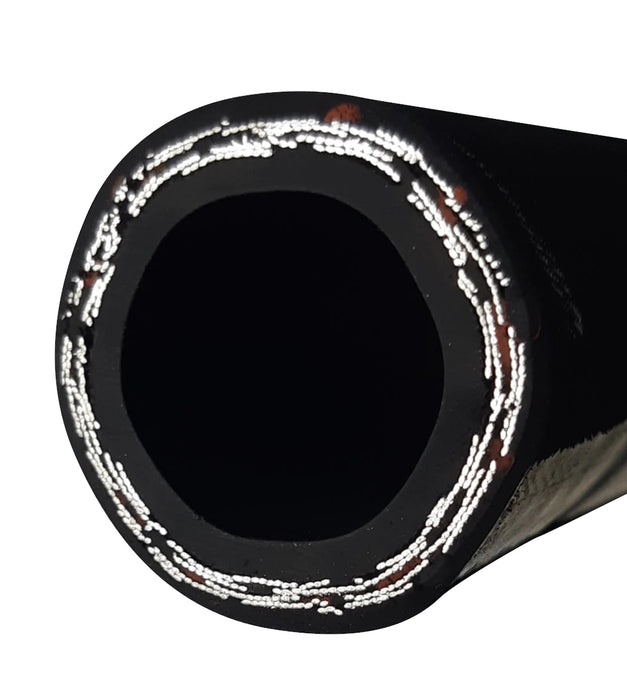

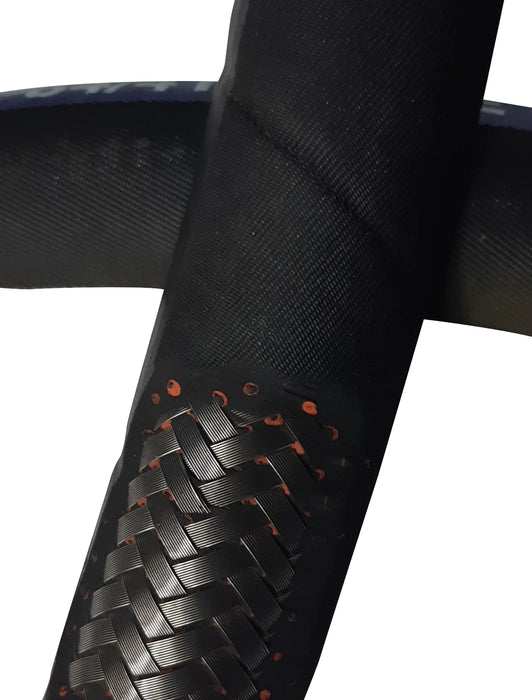

  • Reinforcement: Two layers of braided high-tensile steel wire for durability and strength.
  • Outer Cover: Wrapped tough synthetic rubber, resistant to oil, ozone, weather, and abrasion for extended service life.

Applications:

  • High-pressure hydraulic systems with petroleum-based fluids, water-glycol, lubricants, air (above 100 PSI requires pin-pricking), grease, crude oil, and fuel.
  • Compatible with hot oil, fire-resistant hydraulic systems, and water-oil emulsions.

Performance Highlights:

  • Certified for 200,000 impulse cycles at 133% of maximum pressure (5300 PSI) and 120°C.
  • Tough yet flexible design facilitates easy fitting and reliable performance.
  • Compatible with crimped and reusable field-fit fittings.

Compatibility:

The ENGMATTEC SAE 100R2 Hydraulic Hose is fully interchangeable with major hose brands and fittings, such as:

  • Hose Brands: RYCO Avenger T28A, Gates 8CR2, Parker 301SN-8, Manuli Fluiconnecto FL2T08, and more.
  • Hose Fittings: RYCO Bitelok T200/T700, Eaton Z Series, Southcott Super Crimp, Taipan K08, and others.

Why Choose ENGMATTEC Hose?

  • Non-skive design simplifies assembly, eliminating the need for outer cover removal.
  • Meets or exceeds SAE and EN 853 2SN standards.
  • Certified to deliver reliable performance for a minimum of 1000 excavator operating hours.
