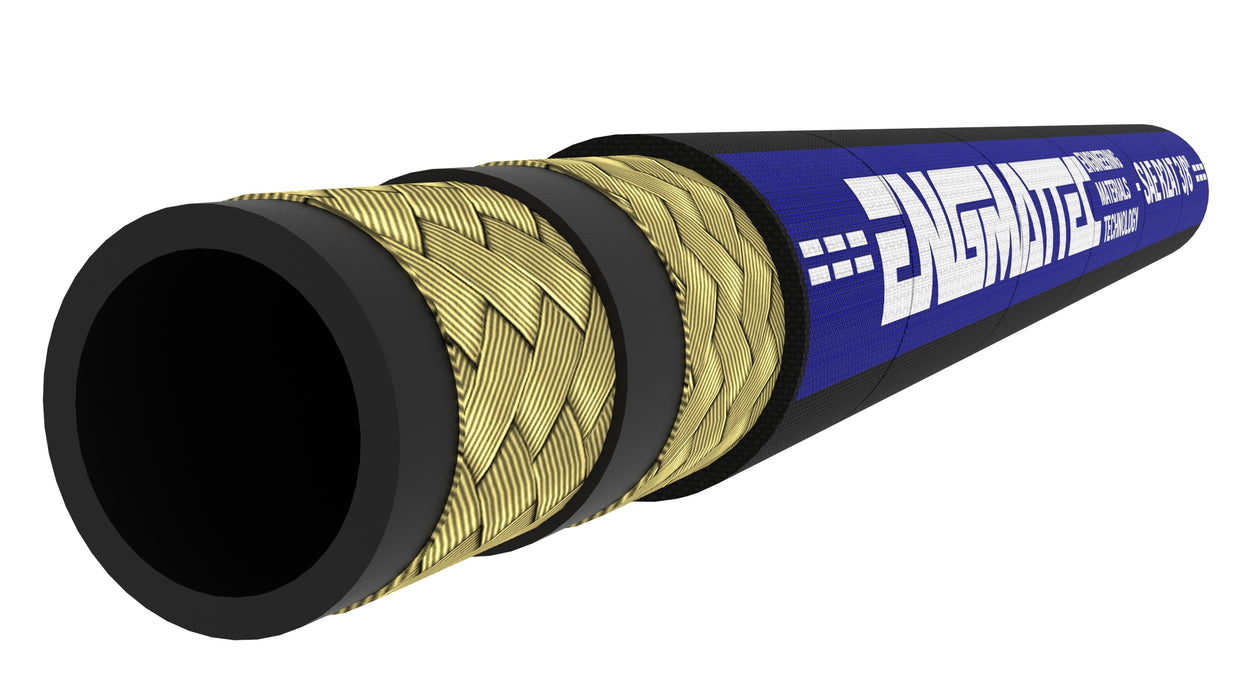

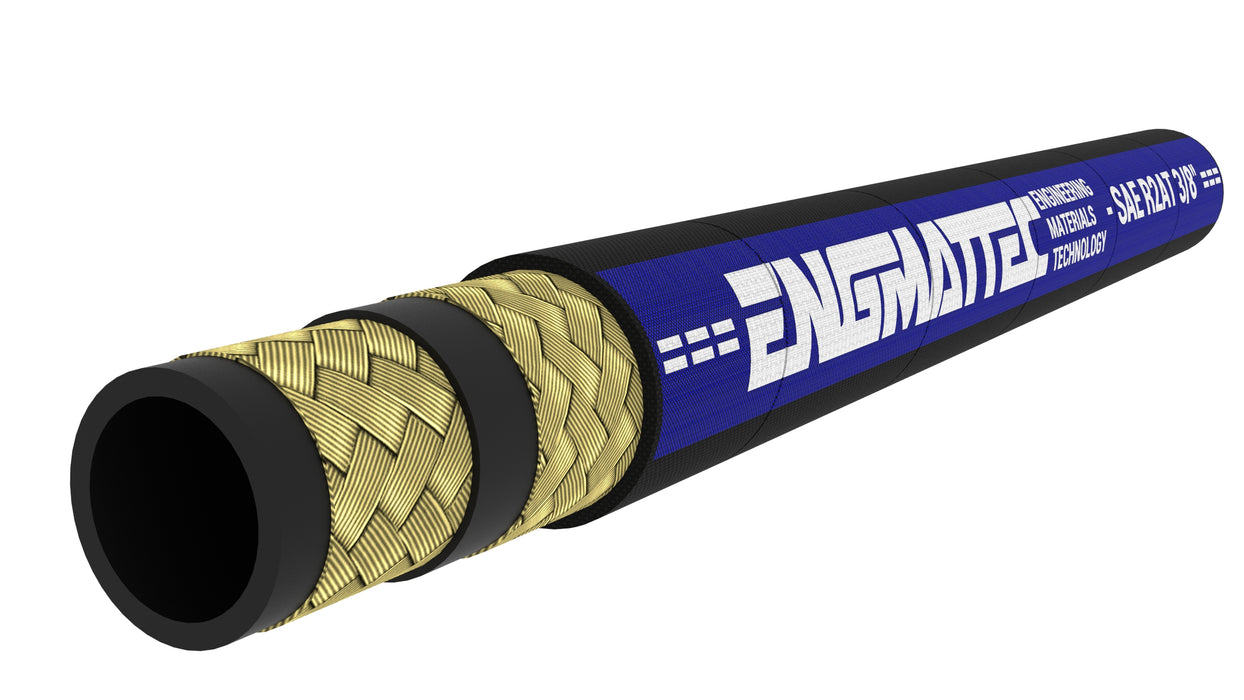

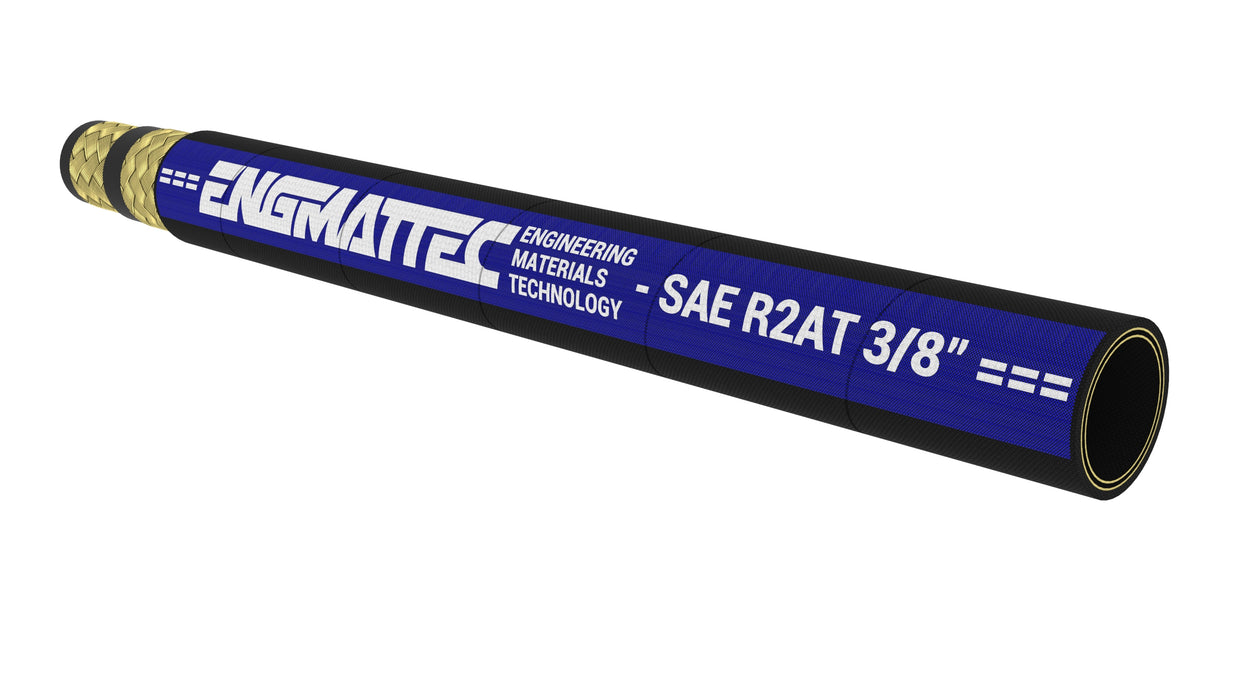

Engmattec - SAE 100R2 - Double Wire Braid (06) 3/8" - 5000psi - Bundle

Engmattec - SAE 100R2 - Double Wire Braid (06) 3/8" - 5000psi - Bundle

SKU H-R2-06-EN-10
by Engmattec
$117.00
$117.00 - $1,170.00
$117.00
$99.65
$99.65 - $708.66
$99.65

ENGMATTEC - SAE 100R2 Double Wire Braid Hydraulic Hose (06) 3/8" - 5000psi – 10 Metres

The ENGMATTEC SAE 100R2 Hydraulic Hose is a durable, high-quality two-wire braided hose designed for high-pressure applications. This 10-metre roll of 3/8" ID hose provides reliable performance in industrial, agricultural, and construction machinery, meeting demanding operational requirements.

Key Specifications:

  • Pressure Range:
    • Working Pressure: 4850 PSI (5000 PSI maximum rating)
    • Burst Pressure: 20000 PSI (Minimum)
  • Temperature Range: -40⁰C to +120⁰C (intermittent elevated temperatures)
  • Minimum Bend Radius: 135 mm
  • Weight: 0.46 KG/Mtr

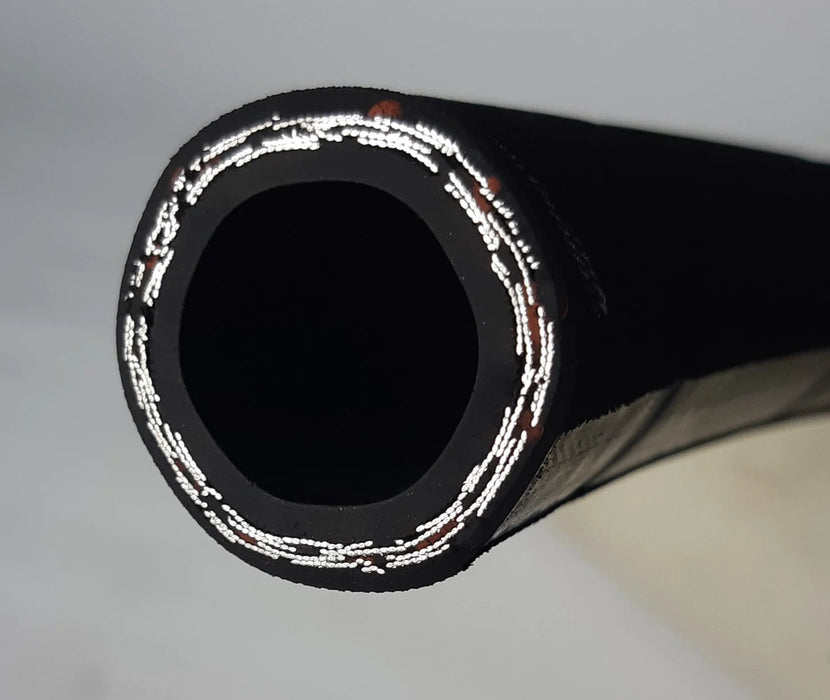

Construction Features:

  • Inner Tube: Synthetic rubber for excellent compatibility with hydraulic fluids.
  • Reinforcement: Two layers of braided high-tensile steel wire for durability.
  • Outer Cover: Wrapped tough synthetic rubber, resistant to oil, ozone, weather, and abrasion.

Applications:

  • High-pressure hydraulic systems with petroleum-based fluids, water-glycol, air (above 100 PSI requires pin-pricking), lubricants, grease, crude oil, and fuel.
  • Suitable for hot oil and fire-resistant hydraulic fluids.

Performance Highlights:

  • Certified for 200,000 impulse cycles at 133% of maximum pressure (6450 PSI) and 120°C.
  • Tough yet flexible outer case simplifies installation.
  • Compatible with crimped and reusable field-fit fittings.

Compatibility:

The ENGMATTEC SAE 100R2 Hydraulic Hose is fully interchangeable with hoses and fittings from brands such as:

  • Hose Brands: RYCO Avenger T26A, Gates 6G2, Eaton GH195, Parker 301SN-6, Manuli Fluiconnecto FL2T06, and others.
  • Hose Fittings: RYCO Bitelok T200/T700, Eaton Z Series, Southcott Super Crimp, Taipan K06, and more.

Why Choose ENGMATTEC Hose?

  • Non-skive design simplifies assembly and eliminates the need for outer cover removal.
  • Meets or exceeds SAE and EN 853 2SN standards.
  • Certified durability with 200,000 impulse cycles.
  • Compatible with both crimp and field-fit reusable fittings for versatility.
