HP Series Gerotor Motor
Need a reliable, compact hydraulic motor that punches above its weight?
The M+S HP Series delivers serious low-speed torque in a small package — perfect for conveyors, augers, agricultural drives, and industrial machinery.
13 sizes available from 28 cc to 396 cc. In stock. Ships fast from QLD.
Why Choose the HP Series?
✔ Low-speed, high-torque — ideal where you need pulling power, not speed
✔ Compact Gerotor design — fits where larger motors won't
✔ Mangano-phosphatised finish — built to resist corrosion from day one
✔ High-pressure shaft seal included as standard
✔ SAE A 2-bolt mount — easy to fit, easy to replace
✔ 7/8" UNF work ports, 7/16" UNF case drain
✔ 12-month warranty included
Specs at a Glance
Displacement: 28.4 cc to 396 cc
Max Speed: up to 1,160 RPM
Max Torque: up to 414 NM (305 Ft/Lb)
Max Inlet Pressure: 140 Bar
Max Flow: 60 Lt/min
Shaft: 1" Woodruff Keyed (standard)

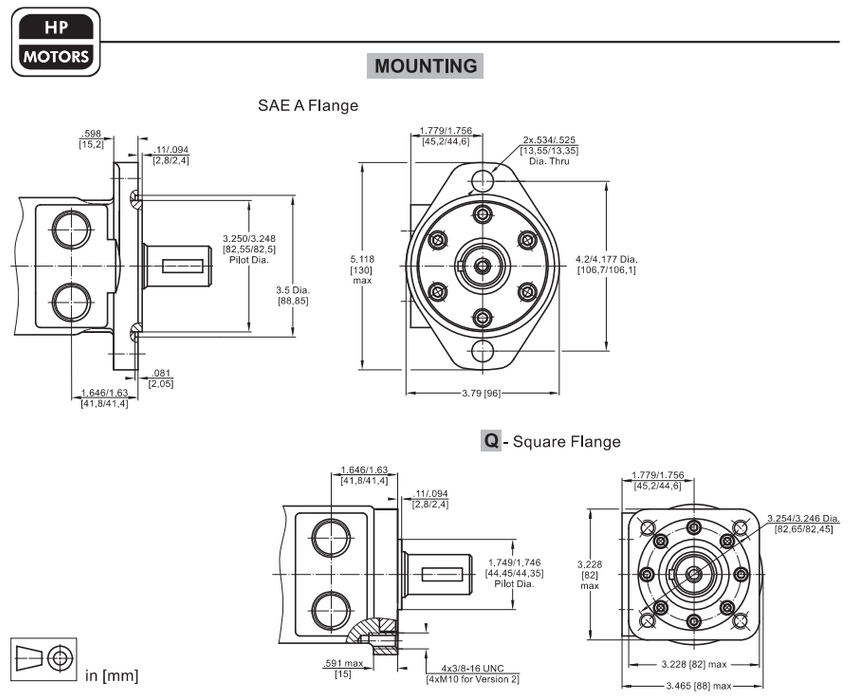

Mount: SAE A 2-bolt
Ports: 7/8" UNF | Case Drain: 7/16" UNF
What Can It Replace?
The HP Series fits straight in place of:
Eaton / Char-Lynn H-Series · Danfoss DH & OMR · Parker TB/TE/TC · White WM/WR/RS · Ross MG · Brevini BH · Hydnet BMPH
What's It Good For?
Conveyor drives · Augers & feeders · Textile machinery · Winches · Log splitters · Compactors · Agricultural spreaders · Marine winches & net haulers
Quick Tip from our workshop:
Always fill the motor with clean hydraulic fluid before you start it — never run it dry. To ensure best motor life, fill with fluid and run at moderate load for 5 to 10 minutes before returning to full operating pressure.
Always ensure your case drain line is connected and returns to tank with minimal back pressure. A blocked case drain will blow the shaft seal — it's one of the most common avoidable failures we see.
Shipping
We ship across Australia from QLD, VIC, SA, and WA warehouses.
Standard delivery: 2–7 business days
Heavy freight: 3–8 business days
Order before 12 Midday AEST — ships same day (stock permitting)
Freight is charged at actual cost. No inflated product prices to cover hidden shipping.
